Current harmonics mitigation in a packing house with Merus™ Active Harmonic Filter
Challenges in the customer’s packing house
A large automatic packing house was suffering from overheating of the electric boards, failures of electronic devices, PFC systems and unnecessary downtime of production. Power Quality measurements were conducted by Merus Power’s local partner, POS’s service team. A two-week measurement was performed in two locations simultaneously, at the main packing house and the stacker machine room.
Several problems were detected by the analyzer: High harmonic current distortion and a low power factor at the main board and in the stacker machine room.
Solutions that we found for the customer

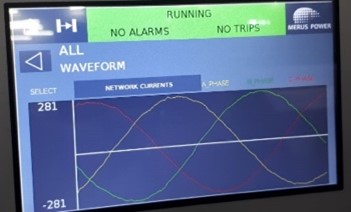

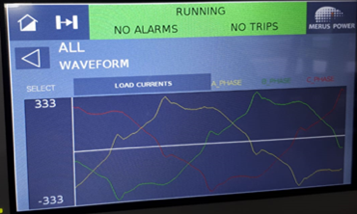

The chosen solution was a 100A Merus™ A2-Active Harmonic Filter that was integrated into the electrical system. In the pictures below, the measured harmonic currents are presented with and without the Merus™ A2. As can be seen, the harmonic currents are minimized effectively. The distortion of currents is also minimized and can be seen in the lower pictures.
Without Merus™ A2 With Merus™ A2
Results and customer benefits
- Increased profitability
- Less downtime
- Continuous efficiency
- Improved overall power quality
- Mitigated harmonic distortion
- Improved power factor
By installing the Merus™ A2, the high harmonic distortion was resolved, power factor was increased remarkably, about 45% while losses and unnecessary heating were reduced. Overall power quality at the packing house was improved and there is less downtime in production. Continuous efficient work is going on and increases results and profitability.
Contact us to design solutions that fit your purposes. Our products are modular and easy to scale for very different needs.
